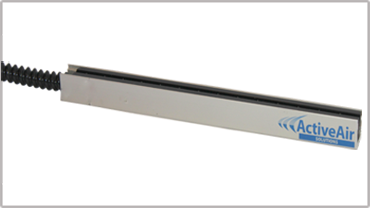

AAS AirRail - AR6000

Specification
 Air Flow Capacity (CFM)    Approx 6000
 Pressure Drop (Inches W.C.)    0.01
 Housing Material Aluminum    Aluminum / 316SS
 Weight (lbs)    3 lb
 Max Operating Temperature (F)     160
 Dimensions - Inches (L x W x H)    36 x 0.75 x 0.75
Electrical
 Voltage*;    115 / 230 VAC
 Power Consumption    60 Watts
 Current Draw (Amps)    0.50 / 0.25
 Frequency (Hz)    50 or 60
 Internal Fuse     1
 Field Electrical Connections**    3 Prong Power Cord
 Approvals / Listings    UL / cUL
*AAS power supply is dual voltage rated by selector switch
**A power cord is provided with each AAS power supply that has a 3 prong connector. If 230VAC is required, the end must be snipped off and hard wired to a junction box.
